Connector
MPO
MPO Easy-Pull Connector
MPO Easy-Pull Connector view1
MPO Easy-Pull Connector view2
Description
The ACON OPTICS MPO Easy-Pull Connector is designed to maximize efficiency in high-density environments. Its innovative push-pull boot design eliminates the need for tabs, allowing quick and secure connections. With a streamlined profile and durable construction, it saves valuable space, making it the ideal solution for modern data centers.
Features
- Easy Push-Pull Boot: Quick connection without tabs.
- High-Density Design: Perfect for tight spaces.
- Enhanced Boot: Durable and reliable.
Applications
- Artificial Intelligence (AI)
- High-Performance Computing (HPC)
- Data center
- Telecommunications
- FTTx deployments
- WDM networks
Housing Color
MPO Mini Connector
12/24 Fiber Center Key
16/32 Fiber Offset Key
Description
The new MPO Mini Connector by ACON OPTICS delivers the performance of traditional MPO solutions in a dramatically reduced form factor—just 18mm in length compared to the conventional 60mm. Engineered for high-density environments, this ultra-compact connector enables greater space savings, making it ideal for behind-the-wall (BTW) applications and small-form cassettes in data-driven infrastructure.
Features
- World’s most compact BTW MPO connector—only 18mm total length for ribbon fiber
- Supports 12/24 fiber center key and 16/32 fiber offset key options
- 18mm compact length supports improved space efficiency in back panels and small cassettes
- Ideal solution for high-density, space-constrained environments
Applications
- Artificial Intelligence (AI)
- High-Performance Computing (HPC)
- Data centers
- Telecommunications
- FTTx deployments
- WDM networks
MT Ferrule
12 Fiber SM/MM
16 Fiber SM/MM
24 Fiber SM/MM
32 Fiber SM*
36 Fiber SM*
Description
ACON OPTICS provides a range of MT ferrules designed to meet diverse performance requirements, catering to specific applications and fiber count needs. Our offerings include both singlemode and multimode ferrules, available in standard as well as low-loss performances.
Features
- High precision guide pin
- Guide pin pitch of 4.6mm (12, 24, 36 Fiber)/ 5.3mm (16, 32 Fiber)
- Fiber pitch of 0.25mm
- High precision molding for high performance
- Standard insertion loss of Max 0.7 dB
- Low insertion loss of Max 0.35dB
- Available to support for 100G, 200G, 400G and 800G link applications
- *Under development
Applications
- MPO/MTP cable assemblies
- Optical connectivity for OBO backplane
- Multi-channels high speed connectivity
- Data Center application
- Tele communications
- FTTx deployment
- WDM networks
MPO Connector
MPO 16/32F Short Boot
MPO 16/32F Round 3mm
MPO 16/32F Bare Ribbon
MPO 16/32F Ribbon Boot
MPO 12/24/36F Short Boot
MPO 12/24/36F Round 3mm
MPO 12/24/36F Bare Ribbon
MPO 12/24/36F Ribbon Boot
Description
ACON OPTICS offers a full range of MPO connectors and solutions to meet diverse demands across various applications and operating environments. Our MPO connectors feature an advanced design, guaranteeing proven reliability, high precision, and remarkable performance to seamlessly support next-generation data rates.
Features
- Meet IEC 61755-3-31 Grade B standard
- Low insertion loss, 0.35dB Max
- Trapezoid spring enhances mechanical performance
- Available to support 40G/100G/200G/400G/800G
- Various boots are available for MPO connectors
Applications
- Data center application
- Multi-channels high speed connectivity
- WDM networks
- Telecommunications

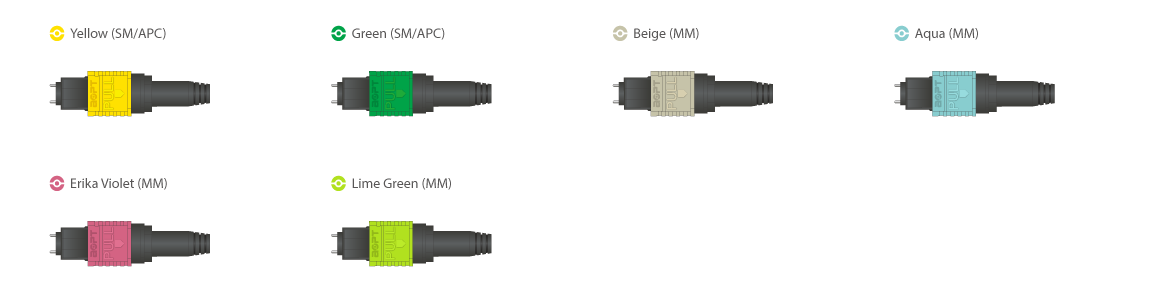

Housing Color
