High-Speed Products
AOC
AOC

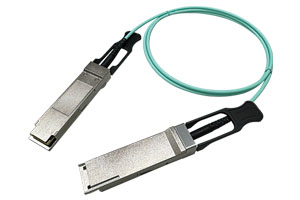

100G QSFP28

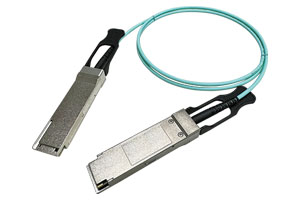

200G QSFP56

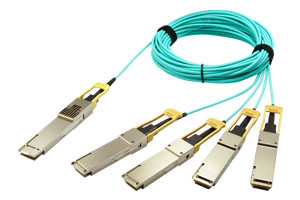

400G QSFP-DD to 4x100G QSFP56

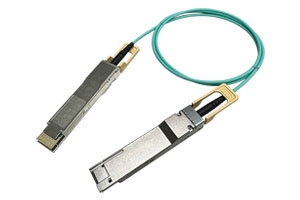

400G QSFP-DD

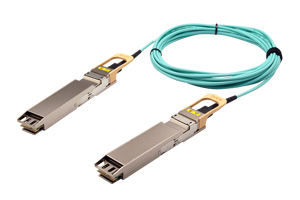

800G OSFP
Description
ACON OPTICS offers a full range of high-performance Active Optical Cables (AOCs) including 800G, 400G, 200G, and 100G solutions, purpose-built for AI, cloud, and next-generation data center environments. These hot-pluggable, low-power AOCs deliver reliable, high-speed connectivity over multimode fiber—supporting up to 100 meters reach and optimized for modern networking demands.
Features
- 8-channel active optical cable
- 53.125GBd PAM4 ×8 channel
- 800G AUI-8 C2M Electrical interface
- Cable length available up to 100m on OM4 MMF 850nm VCSEL and PIN receiver
- OSFP MSA package
- Hot pluggable
- Very low EMI and excellent ESD protection
- +3.3V power supply
- Power consumption less than 15.5W
- Operating case temperature: 0~+70°C
- IIC rate up to 1MH
Applications
- 800G Ethernet
- Data center switch
- InfiniBand NDR
