Reality Series - Fiber Optic Extender
USB
USB 3/2/1 Extender Over Fiber, receiver with 1 Type-A and 1 Type-C output
1 Type-A & 1 Type-C output view1
1 Type-A & 1 Type-C output view2
1 Type-A & 1 Type-C output view3
Description
The AOPT-U321AC-300(S)-2LC fiber optic transmitter and receiver set provides extension of uncompressed USB data signals of your USB 3.1 Gen 1 (5Gbps) devices up to 300m over Single-mode or Multimode fiber and is backwards compatible with USB 2.0 and 1.1 peripherals. The receiver features a two-port USB hub with standard-A and type-C receptacle. This system is Plug-and-Play that provides an easy way to extend USB security cameras, conference cameras, and peripherals such as storage devices, keyboards, and mice in pro AV environments.
Features
- Extend USB3.1, USB2.0 and USB1.1 devices up to 300m over Single-mode or Multimode fiber
- USB3.1 Gen 1 data rate up to 5Gbps
- Receiver features a two-port USB hub with
- Type-A and Type-C receptacle
- Plug-and-play, no driver or software required
- Receiver with locking power connector
Applications
- Security and Monitoring
- USB 2.0 Device (Pen Drive) extension
- USB 1.1 Device (Keyboard or Mouse) extension
- Google camera extension
- Logitech BRIO 4K Pro camera extension
USB 3/2/1 Extender Over Fiber, receiver with dual Type-A output
Dual Type-A output view1
Dual Type-A output view2
Dual Type-A output view3
Description
The AOPT-U321AA-300(S)-2LC fiber optic transmitter and receiver set provides extension of uncompressed USB data signals of your USB 3.1 Gen 1 (5Gbps) devices up to 300m over Single-mode or Multimode fiber and is backwards compatible with USB 2.0 and 1.1 peripherals. The receiver features a two-port USB hub with standard-A receptacles. This system is Plug-and-Play that provides an easy way to extend USB security cameras, conference cameras, and peripherals such as storage devices, keyboards, and mice in pro AV environments.
Features
- Extend USB3.1, USB2.0 and USB1.1 devices up to 300m over Single-mode or Multimode fiber
- USB3.1 Gen 1 data rate up to 5Gbps
- Receiver features a two-port USB hub with Type-A receptacle
- Supports Type-C conversion cable at receiver
- Receiver with locking power connector
Applications
- Security and Monitoring
- USB 2.0 Device (Pen Drive) extension
- USB 1.1 Device (Keyboard or Mouse) extension
- Google camera extension
- Logitech BRIO 4K Pro camera extension

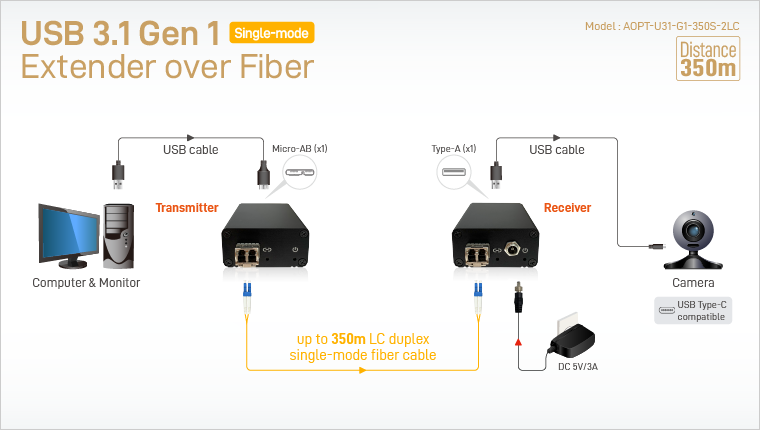

USB 3.1 Gen1 Single-mode Extender
SM view1
SM view2
Description
The AOPT-U31-G1-350S-2LC extender provides the ability to extend the distance of your USB 3.1 Gen 1 (5G) device up to 350m over Single-mode fiber. The Device unit supports USB Type-C devices using a conversion cable.
Features
- Extend long distance USB 3.1 Gen 1 connection up to 350m (Single-mode fiber)
- Supports Type-C conversion cable at Device unit
- Plug-and-play, no driver or software required
- Supports all USB 3.1 Gen 1 devices
Applications
- Security and Monitoring
- Remote storage
- Conferencing cameras extension
- Microsoft Kinect extension
- Google camera extension
- Logitech BRIO 4K Pro camera extension
USB 3.1 Gen1 Multi-mode Extender
MM view1
MM view2
MM view3
Description
The AOPT-U31-G1-350-2LC extender provides the ability to extend the distance of your USB 3.1 Gen1 (5G) device up to 350m over Multimode fiber. The Device unit supports USB Type-C devices using a conversion cable.
Features
- Extend long distance USB 3.1 Gen1 connection up to 350m (Multimode fiber)
- Supports Type-C conversion cable at Device unit
- Plug-and-play , no driver or software required
- Supports all USB 3.1 Gen1 devices
Applications
- Security and Monitoring
- Remote storage
- Conferencing cameras extension
- Microsoft Kinect extension
- Google camera extension
- Logitech BRIO 4K Pro camera extension
