Connector
LC

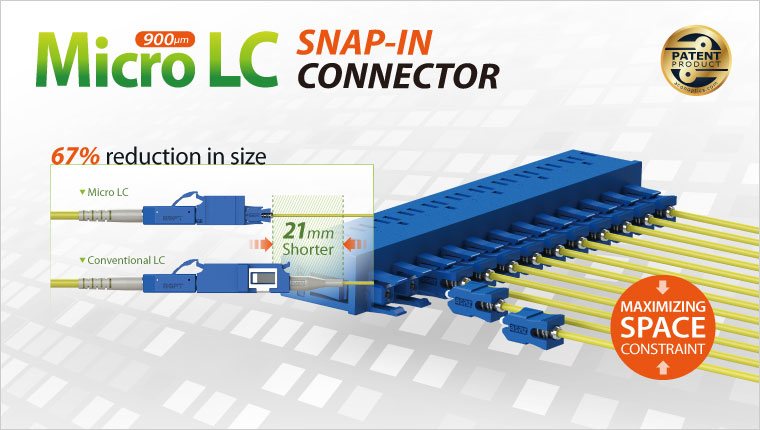

Micro LC Snap-in Connector

Micro LC Snap-in view1

Micro LC Snap-in view2

Micro LC Snap-in view3
Description
ACON OPTICS Micro LC Connector uses a simple snap-in connector design which makes ease of connecting and disconnecting. Its bootless design maximizes space constraint ideal for behind the wall application and high density solution.

Features
- Simple snap-in connector design makes ease of connecting and disconnecting.
- Compatible to conventional LC
- Remarkable increase in space on the back end panel and in small cassette.
- Micro LC adapter is a hybrid adapter which can accommodates micro LC connector and conventional LC connector.
- The best option for BTW application and high density solution.
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC Premium Connector

LC Premium Standard 0.9

LC Premium Standard 2.0

LC Premium Unibody 0.9

LC Premium Unibody 2.0
Description
ACON OPTICS Communications (AOPT) is featuring a revolutionary LC Premium Connector that allows precise of ferrule for Grade A patchcord, and machine free tuning.
Features
- Innovative square flange design to avoid the rotation and reduce insertion loss
- Machine free tuning process
- Premium Low Loss SM to meet IEC 61753-1 Grade A random mating requirement of Max 0.15dB.
- Premium SM to meet IEC 61753-1 Grade B random mating requirement of Max 0.25dB
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC Mini 25mm Connector

LC Mini 25mm

LC Mini 30mm

LC Mini 35mm

LC Mini 42mm
Description
ACON OPTICS Communications (AOPT) is featuring a revolutionary LC 25mm Connector that has an 25mm space saving compared to the current market connectors. The only smallest behind the wall (BTW) LC connector in the world.

Features
- World compact BTW LC with 900μm mini boot.
- Connector is half the length as compared to standard LC.
- Short boot design to save space for adapting small cassette.
- Remarkable increase in space on the back end panel.
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC Mini 32mm Connector

LC Mini 32mm view1

LC Mini 32mm view2
Description
ACON OPTICS Communications (AOPT) is featuring a revolutionary LC 32mm Connector that has an 18mm space saving compared to the current market connectors.

Features
- Rectangle flange design to avoid the rotation of ferrule
- Short boot design to save space for adapting front panel cabling.
- Special hook-lock design to secure connector structure.
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC Alignment Adjustable Connector

LC Alignment Adjustable view1

LC Alignment Adjustable view2
Description
ACON OPTICS Communications (AOPT) is featuring a revolutionary LC Alignment Adjustable Connector that allows precise alignment of ferrule for Grade A patchcord.

Features
- Allow precise alignment of ferrule for Grade A patchcord
- Easy to adjust ferrule concentricity to reduce insertion loss
- Tool-less matching alignment adjustable type
- Adapting for random mating occasion
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Testing instruments
- 4G/LTE base station
- CATV
Housing Color

LC Standard Connector

LC Standard 45mm

LC Standard 50mm
Description
ACON OPTICS LC Standard Connector has been our flagship product for more than 16 years. ACON OPTICS LC connectors are manufactured with PEI material. In-house ferrule and plastic injection gives vertically quality control. Telcordia GR-326, IEC, RoHS2, REACH, UL94V-0 standard compliance also gives reliability.

Features
- One-piece type or multi-piece type for assemby options
- 0.9, 2.0, 3.0mm cable diameter available
- Colored boots for choices
- In-house ferrule and plastic injection
- Telcordia GR-326, IEC, RoHS2, REACH, UL94V-0 standard complying
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC Switchable Uniboot Connector

LC Switchable Uniboot view1

LC Switchable Uniboot view2
Description
The ACON OPTICS LC Switchable Uniboot Connector offers effortless and rapid polarity reversal. Its Uniboot design reduces cable size by 50%, simplifying cable management in high-density applications.

Features
- Easy Polarity Reversal.
- Uniboot design is essential for maximizing space savings of up to 50%.
- Uniboot assists in cable management.
- Boot types available for 2.0mm and 4.8mm diameter.
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color

LC HD Uniboot Connector

LC HD Uniboot push-pull tab (Fixed)

LC HD Uniboot push-pull tab (2-step)
Description
ACON OPTICS LC HD Uniboot Connector comes with a “push-pull” tap design which makes its density increase more than 50% in panel. These make the connector easier to disengage from densely loaded panels without the need for any tools.
ACON OPTICS LC HD Uniboot lever design utilizes an adjustable “push-pull” tap which is available in 2 standard lengths (65mm & 80mm)
The new “push-pull tap” design enables access to the extremely dense fiber optic panels while doing cabling or maintenance.

Features
- ACON OPTICS unique design
- Activation of lever provides ease of connect and disconnect.
- No special tools are required.
- Mini boot allows for more assembly space.
- Increase panel density by more than 50%.
- Corning and various fiber options
Applications
- Data communications
- Telecommunications
- FTTx deployments
- Optical measurement instruments
- 4G/LTE, 5G base station
- CATV
Housing Color
